Cooling Patch Technology Solution

Characteristics and Examples

• Easy to operate and compatible with existing devices
• Low cost and high cost-effectiveness
• High colloid strength, no overflow at the edges
• The material is non-toxic and safe

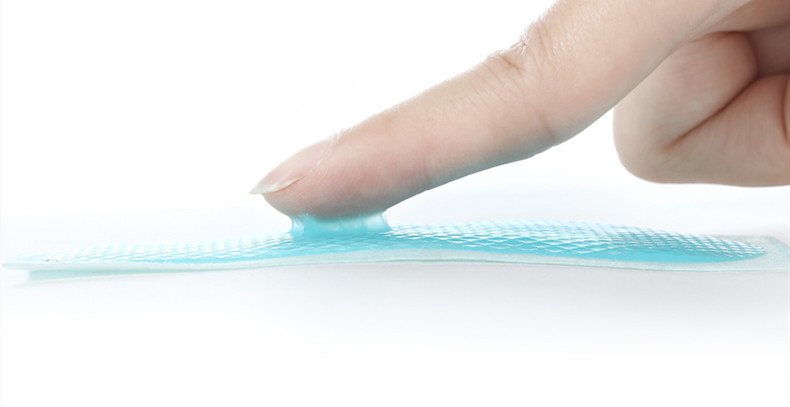

Technical principles and structure

The  main  structure  of  the  cooling  gel  sheet  is  divided  into  three parts:  substrate   non-woven  fabric,   main  body  layer  cooling   hydrogel layer and release plastic film.Under the action of aluminum ions, sodium polyacrylate  crosslinks  to  form  a  three-dimensional  water   retaining adhesive layer.After being coated in non-woven fabric and release film by special  coating  equipment, the  elastic  hydrogel  layer  is  solidified.After applying the cooling patch, the heat on the skin will be absorbed by the hydrogel layer and dissipated through vaporization, so as to continuously take away the heat from the body.The cooling time can generally last for 6 to 8 hours or more.

Required Equipment

Materials and formulas (Send Inquiry to get complete forms)

Remarks：

• Except for self provided materials, our company provides all other materials
• Pigments and cooling agents can be adjusted appropriately according to actual needs
• The amount of disodium EDTA used can be appropriately reduced without affecting the coating, otherwise it needs to be increased
• Preservatives are self-provided materials, due to environmental and other special circumstances resulting in product mildew, our company will not be responsible.

Operation process

---

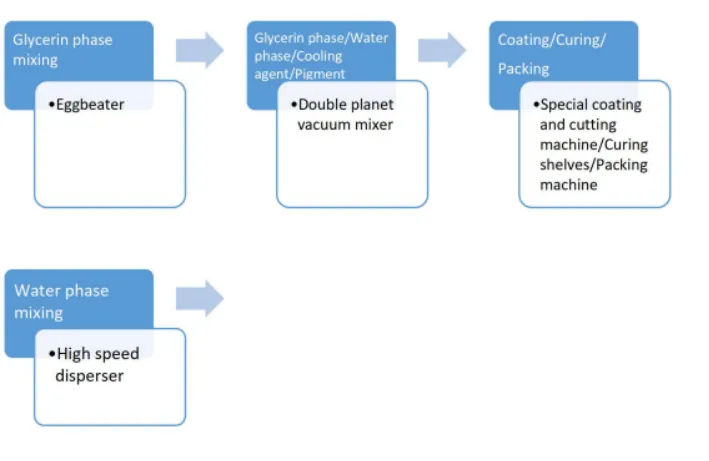

A. Process flow diagram

B.   Operational details


1. Separate the required materials according to different categories and weigh them for use, and prepare the cooling agent (alcohol and menthol are dissolved separately in proportion for use).

2. Add glycerin to the egg beater, then add the powder required for the    glycerin phase. First, manually mix with the mixer blade of the egg beater, and then install and start stirring (fast) for about 10 minutes until a uniform paste like semi fluid is formed with no visible powder particles.



3. Prepare the water phase in another container, add the required materials, and stir with a high-speed disperser until completely dissolved.



4. Add the prepared glycerin phase to the double planet vacuum mixer, then quickly pour the water phase into the mixing pot of the vacuum mixer, disperse the glycerin phase, and add pigments and cooling agents (menthol and alcohol solution) in proportion.



5. Start the double planet vacuum mixer, vacuumize to below 0.08pa of the pressure gauge, then mix quickly (50 revolutions) for 3 min, and medium speed (30 revolutions) for 5min, stop mixing, cancel the vacuum, and pour the gel into the hopper of the special coating machine.



6. Discharge the material from the hopper, turn on the coating machine, set the coating cutter speed and conveyor belt speed according to the output, place the cut cooling patches flat on the curing shelves, and air dry for curing (8-12 hours).



7. After curing, it is bagged and packed, and then put into the box.



C.   Precautions


1. The glycerin phase stirring must form a homogeneous fluid without lumps,  otherwise  it  will  affect  the  material  state  and  even  scrap  the entire pot.

2. The time from the discharge of the material after vacuum stirring to the  completion  of  coating  should  not  be  too  long,  and  should  be controlled  within  30   minutes  as   much  as  possible,  otherwise  it   may cause difficulty in coating the end materials or even scrap.

3. The cut patches should be laid flat as much as possible and should not be stacked too much.



We are factory

---

Who is CHOSENKIND Sodium Polyacrylate?

CHOSENKIND is a reputable and experienced Chinese supplier of Sodium Polyacrylate. Established in Jiangmen City, Guangdong Province, we have been dedicated to serving the export market for over 11 years. With two manufacturing facilities, we are well-equipped to meet the needs of customers worldwide, ensuring reliable and high-quality supply.

One of Sodium Polyacrylate Industry Standard (T/GDKJ 0024—2022) Setter in China

Established in 2007, Jiangmen Xinhui Zhongsheng Biotechnology Company is a major manufacturer of food grade sodium polyacrylate in China. We have obtained ISO22000 and HALA certificates, more than 20 invention and utility model patents, and established school-enterprise cooperation relationship with Guangdong Food and Drug Institute, etc. In 2020, we were awarded the title of National High-Tech Enterprise, and in 2023, we were awarded the title of Jiangmen Intellectual Property Rights Demonstration Enterprise, and the Provincial Specialized Specialized Specialized Specialized New Enterprise, and our water-soluble sodium polyacrylate won the Second Prize of Scientific and Technological Invention of Guangdong Provincial Light Industry Association in 2023. The products are widely used in food and feed additives. The products are widely used in food, feed additives, medical hydrogel, antipyretic patch raw materials, etc. Many products are comparable to Japanese imported products.



In 2022, we worked with Guangdong Food and Drug Institute, Guangdong No. 2 Hospital of Traditional Chinese Medicine (Guangdong Institute of Traditional Chinese Medicine Engineering and Technology), and Foshan Yafo Medical Devices Company to formulate the group standard of partially neutralized sodium polyacrylate.



What Does CHOSENKIND Provide?

At CHOSENKIND, our primary product line focuses on Sodium Polyacrylate. We offer customizable solutions to meet international standards, catering to both premium and cost-effective needs.

• Building & Constructions Applications:

  • Widely used in the field of Bentonite Improver, Putty Powder Thickening Agent and Concrete Thickener Component.

• Cosmetics Applications:

  • Functions as a suspension and stabilizing agent, providing thickening, foam stability, emulsification, dispersion, adhesion, film forming, and moisture retention.

• Pharmaceutical Applications:

  • Used as a thickener and stabilizing agent in drug formulations, including water-based preparations and ointments.

• Feed Applications:

  • Used as a binder for fish feed, livestock feed, and various pet feeds.
  • Used as a spreading agent for various premixes such as drugs or vitamins for farmed fish or livestock.

• Food Industry Applications:

  • Enhancements for noodles, bread, meatballs, biscuits, drinks, and ice cream to improve texture and quality.



Why Choose Us?

Since our establishment, CHOSENKIND products have been exported to and utilized in over 50 countries. We are committed to ensuring our products meet clients' expectations in terms of quality and price. Additionally, we strive to provide optimal lead times tailored to your project schedule and requirements, guaranteeing satisfaction and efficiency.

What is CHOSENKIND's Mission?

At CHOSENKIND, our mission is to leverage advanced food additive technology to create healthier lives. With a strong background in biology and a solid foundation in technical services, we are dedicated to accelerating the application of Sodium Polyacrylate in both food and industrial fields. Our commitment is to promote human health and improve the quality of life, making significant contributions through our efforts and innovation.

Certifications

---



Packaging & Shipping

---



FAQ

---

What services do you offer?

We provide a one-stop service that includes required equipment, materials, formulas, and technical guidance. We also demonstrate the entire set of operating procedures.

How can I get more details about your services?

To receive more detailed information, please click"Send Message,"and we will send you the detailed file.

What are the key characteristics of your cooling gel sheet?

Our cooling gel sheet is easy to operate, compatible with existing devices, low cost, high cost-effectiveness, and has high colloid strength with no overflow at the edges. The material is non-toxic and safe.

What is the structure of the cooling gel sheet?

The cooling gel sheet consists of three main parts: a substrate non-woven fabric, a cooling hydrogel layer, and a release plastic film. It forms a three-dimensional water-retaining adhesive layer under the action of aluminum ions.

How does the cooling gel sheet work?

After applying the cooling patch, the hydrogel layer absorbs heat from the skin and dissipates it through vaporization, providing cooling for 6 to 8 hours or more.

What equipment is required for the production process?

Specific equipment details are provided upon inquiry. Our company provides all necessary materials except for self-provided materials like pigments and preservatives.

Can I customize the materials and formulas?

Yes, pigments and cooling agents can be adjusted according to actual needs. The amount of disodium EDTA used can also be modified without affecting the coating process.

What is the operational process for producing the cooling gel sheet?

The process involves separating and weighing materials, mixing phases with an egg beater and high-speed disperser, vacuum mixing, and using a coating machine to produce and cure the cooling patches. Detailed operational steps and precautions are available upon request.

What precautions should I take during the production process?

Ensure the glycerin phase forms a homogeneous fluid without lumps, complete the coating process within 30 minutes after vacuum stirring, and lay the cut patches flat without excessive stacking to avoid material issues.

What is the shelf life and packaging of your product?

The cooling gel sheets are bagged, packed, and then boxed after curing, ensuring they are ready for use. For detailed packaging information, please send an inquiry.
